SQUADRON

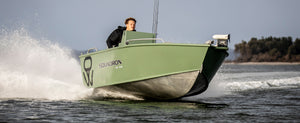

Squadron from Oceanworx is made from 5083 marine grade aluminium and shares many of the design cues from our renowned High Tensile models. The hull design delivers dynamic on water handling with standard inclusions many other brands offer only as options. Delivering a significant value proposition, the Squadron range stands alone as a tough, fishing boat ready to chase your ocean adventure.
SQUADRON 4.8
Specifications
Hull length - 4.84m
Hull length overall - 5.05m
Gunwale beam - 2.17m
Waterline beam - 1.94m
Transom deadrise - 15 degrees
Cut water deadrise - 35 degrees
Min hp - 60hp
Max hp - 90hp
Internal beam - 1.81m
Freeboard - 640mm
Towing weight wet - 990kg
Fuel capacity -
Passenger capacity - 5
Standard Package
Hull
Navigation lights
Bilge pump 800gph
Bilge Pump float switch
Console switch panel
Lowrance Eagle 9" sounder GPS
Painted side sheets
Painted side decks
Alloy Carpeted floor
Side pocket x 2 cockpit
25mm bow rails
25mm side rails
Boarding step
Boarding ladder
Bow sprit
Bow roller
Bow mount plate
2 x upholstered driver seat with bolster
3 seat bases
Side console
Sports steering wheel
Hydraulic steering
4 x alloy rod holder
4 x alloy cleats
Plumbed live bait tank
Front cast deck
Rear cast deck
Engine splash well
Single battery with battery switch
Inshore safety gear (NSW)
Boat and trailer registration
Package Options
Tow Points (Water Sports)
Cup Holders
Kill Tank
2 tone side sheets
Under Gunwale Lights
Console Wind Protector
Console 5 rod rack vertical
Alloy rod holder
Sounder Upgrade
Console Grab Rail
Console wind deflector
Plumbed keeper tank
Talk to us about any other options you are interested in.
SQUADRON 5.2 (Coming Soon)
Specifications
Hull length - 5.3m
Hull length overall - 5.65m
Gunwale beam - 2.25m
Waterline beam - 2.05m
Transom deadrise - 17 degrees
Cut Water deadrise - 45 degrees
Bottom sheet thickness - 5mm
Side sheet thickness - 4mm
Maximum hp - 135hp
Freeboard - 710mm
Towing weight wet - 1350kg
Fuel capacity - 160 litres
Passenger capacity - 6
Standard Package
Hull
Navigation lights
Bilge pump 850gph
Bilge Pump float switch
Console switch panel
Simrad Go 9 sounder GPS
Painted side sheets
Painted side decks
Chequer plate floor
Side pocket x 2 cockpit
32mm bow rails
32mm side rails
Boarding step
Boarding ladder
Bow sprit
Bow roller
Bow mount plate
2 x upholstered driver seat with bolster
3 seat bases
Side console
Console shelf
2 x console cup holders
Sports steering wheel
Hydraulic steering
4 x alloy rod holder
4 x alloy cleats
Plumbed live bait tank
Front cast deck kill tank with drain to transom
Front cast deck
Rear cast deck
Engine splash well
Single battery with battery switch
NSW Inshore safety gear
Boat and trailer registration
Package Options
Bow side pockets
Painted sides internal
Painted floor
2 tone side sheets
Anchor well lid
Console 5 rod rack vertical
Alloy rod holder
Bimini
Full boat cover
Console wind deflector
Plumbed keeper tank
Talk to us about any other options you are interested in.
